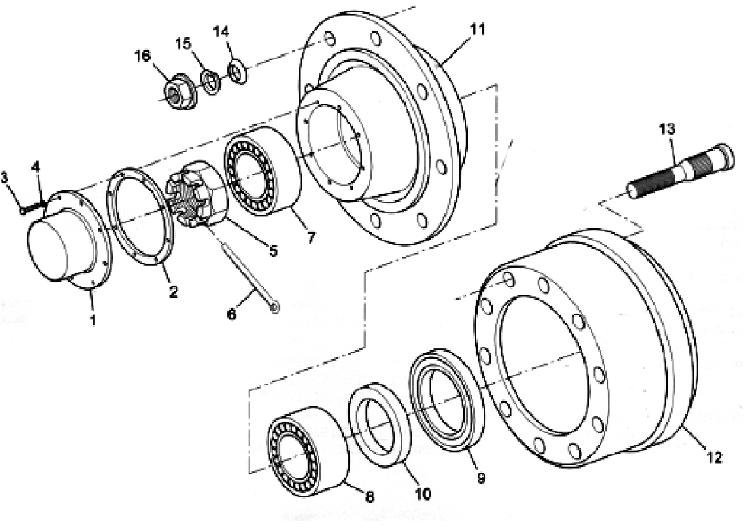

Part
Description
|
Part
Description
|
Part
Description
|
SQ
Axle 10 Stud (Inboard Mounted Brake Drum)
|
75 SQ & 92 Axle 8 Stud (Inboard Mounted
Brake Drum)
|
105/112 SQ & 127 DIA, Axle 10 Stud
(Outboard Mounted Brake Drum)
|
| 1.
Hub Cap 6 - hole |
1.
Hub Cap 6 - Hole |
1.
Hub Cap 6 - Hole |
| 2.
Gasket |
2.
Gasket |
2.
Gasket |
| 3.
Setscrew M6 x 16 |
3.
Setscrew M16 x 6 |
3.
Setscrew M6 x 16 |
| 4.
Spring Washer 6 Dia |
4.
Spring Washer 6 Dia |
4.
Spring Washer 6 Dia |
| 5. Axle Nut 1.5" BSP |
5.
Axle Nut 1.25" BSP |
5.
Axle Nut M88 |
| 6.
Split Pin 6 x 70 |
6.
Split Pin 6 x 70 |
6.
Split Pin 8 x 125 |
| 7.
Outer Bearing 749/742 |
7.
O/Bearing 92 & 75 sq axle 32214 |
7.
Outer Bearing - HM5184445/410 |
| 8.
Inner Bearing 749/742 |
8.
I/Bearing 92 & 75 sq axle 32214 |
8.
Inner Bearing |
| 9.
Oil Seal |
9.
Oil Seal 92 & 75 sq axle |
9.
Oil Seal |
| 10.
Collar |
10.
Collar (Abutment) - For 92 sq & 75 sq |
10.
Collar |
| 11.
Hub |
11.
Hub - For 92 sq & 75 sq |
11.
Hub |
| 12.
Brake Drum 395 x 150 10 Stud |
12.
Brake Drum - 395 x 150 |
12.
Brake Drum - 420 x 180 10 Stud |
| 13.
Wheel Stud M22 |
8 Stud M22 & 355 x 90 |
13.
Wheel Stud M22 |
| 14.
Inner Washer |
8 Stud M22 |
14.
Inner Washer |
| 15.
Outer Spring Washer |
13.
Wheelstud M22 |
15.
Outer Spring Washer |
| 16.
Wheel Nut M22 |
14.
Inner Washer |
16.
Wheel Nut M22 |
|
15.
Outer Spring Washer |
|
|
16.
Wheel Nut M22 |
|
|
|
|
